Overdenture Attachments
The system offers multiple solutions for overdenture treatment planning when implants are angles and vertical space is limited.
It is possible to deliver overdenture retention by means of simple independent single attachments or more complex bars supported by multiple implants. Numerous cost-effective possibilities are available for the restoration of angled implants.

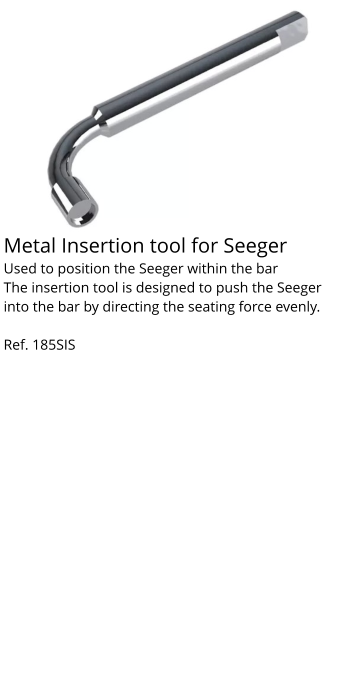

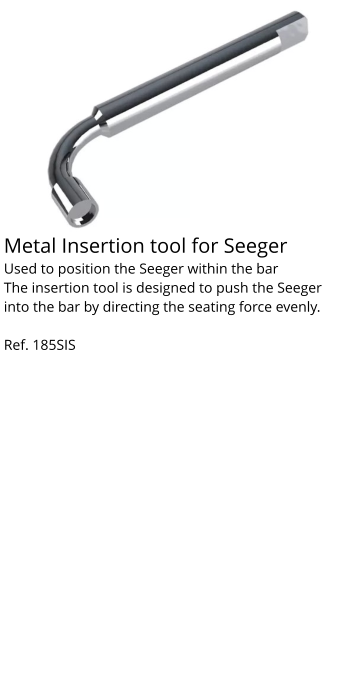

Metal Insertion tool for Seeger Used to position the Seeger within the bar The insertion tool is designed to push the Seeger into the bar by directing the seating force evenly. Ref. 185SIS

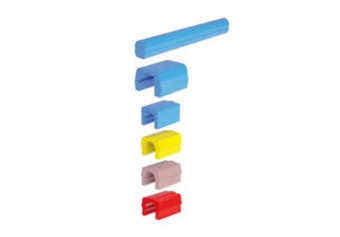

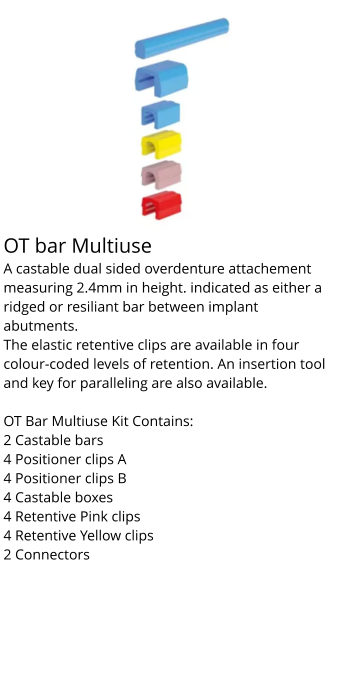

OT bar Multiuse A castable dual sided overdenture attachement measuring 2.4mm in height. indicated as either a ridged or resiliant bar between implant abutments. The elastic retentive clips are available in four colour-coded levels of retention. An insertion tool and key for paralleling are also available. OT Bar Multiuse Kit Contains: 2 Castable bars 4 Positioner clips A 4 Positioner clips B 4 Castable boxes 4 Retentive Pink clips 4 Retentive Yellow clips 2 Connectors

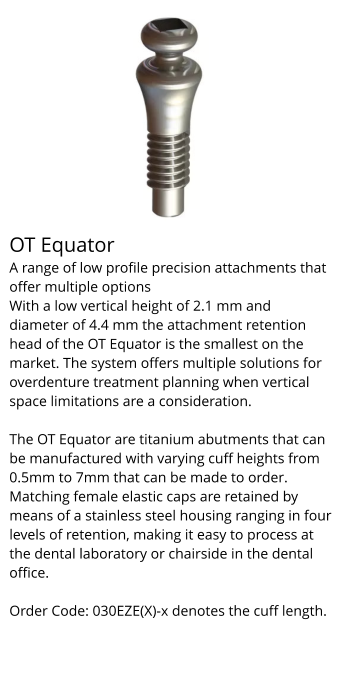

OT Equator A range of low profile precision attachments that offer multiple options With a low vertical height of 2.1 mm and diameter of 4.4 mm the attachment retention head of the OT Equator is the smallest on the market. The system offers multiple solutions for overdenture treatment planning when vertical space limitations are a consideration. The OT Equator are titanium abutments that can be manufactured with varying cuff heights from 0.5mm to 7mm that can be made to order. Matching female elastic caps are retained by means of a stainless steel housing ranging in four levels of retention, making it easy to process at the dental laboratory or chairside in the dental office. Order Code: 030EZE(X)-x denotes the cuff length. Cap Assortment Kit f Female caps are retained by means of a titanium housing ranging in four levels of retention, making it easy to process at the dental laboratory or chairside. These colour coded resilient rings are available in a variety of retentive strengths and held by a titanium housing cured into the denture base. 1. Black retentive cap is for laboratory use only & has no retentive properties 2. Yellow retentive cap - extra soft 3. Pink retentive cap - soft 4. Clear retentive cap -standard 5. Violet retentive strong Implant System British Dental Implant design & innovation. Impression Coping Used to take transfer impressions of OT equators This is a pickup coping used to record and transfer the location of OT Equators placed on implants in the mouth to the laboratory for the fabrication of the overdenture analog model. They fit over the OT Equators and are retained in the impression. The laboratory can then insert the Equator laboratory analogs to produce an analog model for fabrication of the overdenture complete with retentive attachments ready for insertion into the patient's mouth. Order Code: 044CAIN Learn more Learn more Learn more OT Equator Passive Bar System The Seeger system has been designed to allow the construction of bars on implants. The Seeger can correct any imperfections, generated during the technical steps or phase of the attachment position. The Seeger in peek connects the bar passively to the OT Equator attachments and prevents the attachment from unscrewing. The bar can be easily removed with the self-extracting titanium screw. Seeger Kit contains: Castable Cylinder for Seeger Self-extracting Seeger Titanium Screw for the self-extracting Seeger Order Codes:15OR SEEGER8ESA OT Equator Smartbox A system that permits non-parallel implants to be used for overdenture retention. The Smart Box is a retentive caps housing with innovative pivoting mechanism and rotational core that permits passive insertion under extreme situations of up to 50-degree implant divergency. Kit Contains: 1 Smartbox housing with black cap for laboratory 1 Pink protective disk 4 Retentive caps (1 extra-soft, 1 soft, 1 standard, 1 strong) Order Code: 335SBC OT Equator Square Driver Used to insert & retrieve overdenture components The driver tip is a 1.25mm square which engages the OT Equator and titanium screw. It have a outer plastic holder designed to retain the components and screw during use. Order Code: 774CHE OT Equator Castable Male A burn out used to add additional retention. During the fabrication of a bar these burn out OT Equator Castable males can be waxed onto the bar and can be also used to add retention to a bar especially where the implants are not parallel. Order Code. Ref. 151SS OT Equator Driver Holder Outer sleeve used to retain small components during insertion. This fits over the shaft of the square driver and is a safety measure to help prevent the loss of small components while working in the patient's mouth. Order Code: 774HC Implant System British Dental Implant design & innovation. OT Equator Laborator Analogs Replicas of the OT equator Copies of the OT Equator used for the fabrication of an overdenture analogue model. Order Code: 144AE Learn more Learn more Learn more Learn more Learn more Learn more Self-Extracting White Seeger Self locking sleeve that retains the bar passively. The split ring design of the Self-Extracting Seeger allows the sleeve to compress and compensate for any misalignment or inaccuracies in the bar construction to give a passive yet secure fit of the bar to the OT Equator. Order Code. 158SAE. Separately Sold Items To facilitate the replacement of attachments, housing and retentive caps the following items can be provided individually: Violet retention cap - STRONG- 2700g (Order Code: 140CEV) Clear retention cap - STANDARD -1800g (Order Code: 140CET) Pink retention cap - SOFT -1200g (Order Code: 140CER) Yellow retention cap - SOFT - 600g (Order Code: 140CEG) Black non-retention laboratory cap - 0g (Order Code: 140CEN) Metal Housings (Order Code: 141CAE) Learn more Learn more Smartbox Housing Pivoting self correcting retentive cap housing. For divergent implant cases of upto 50-degrees. Kit Contains: 1 Smartbox housing with black cap Order Code: 330SBE Learn more Smartbox Non-Retentive Caps for Laboratory Zero strengh cap coloured black for non-clincal application This cap is used for the correct positioning and location of the the OT Smartbox housing, its design incorporates a small vertical spacer ensuring the housing has sufficient space to swivel in order to permit insertion over divergent equators. The black cap must be replaced by the desired strength retentive cap before dispatch to the clinic. Kit Contains: 4 Smartbox black caps (for laboratory use only) Order Code: 335CSB Titanium Screw for Self-Extracting Seeger A screw used to retain a bar passively to the OT Equator The screw fits the Order Code: 158VAE Learn more Clip Insertion Tool Used to insert retentive clips. This metal tool is used to position the retention clips used with the OT bar system. Order Code: 472ICV Learn more Clip Insertion Tool Used to insert retentive clips. This metal tool is used to position the retention clips used with the OT bar system. Order Code: 472ICV Learn more Learn more OT bar Multiuse A castable dual sided overdenture attachement measuring 2.4mm in height. indicated as either a ridged or resiliant bar between implant abutments. The elastic retentive clips are available in four colour-coded levels of retention. An insertion tool and key for paralleling are also available. OT Bar Multiuse Kit Contains: 2 Castable bars 4 Positioner clips A 4 Positioner clips B 4 Castable boxes 4 Retentive Pink clips 4 Retentive Yellow clips 2 Connectors Learn more Learn more
Useful Information
Useful Information
About NanoDent Technologies
Get In Touch Tel: +44 207 307 1919 E: sales@nanodent.uk
Made by MCS
2006-2025 nanodent Technologies. All rights reserved.
Useful Information
Tel: +44 207 307 1919 E: sales@nanodent.uk
2006-2023 nanodent Technologies. All rights reserved.
About NanoDent Technologies
Get in Touch
Made by MCS
Overdenture Attachments
The system offers multiple solutions for overdenture treatment planning when implants are angles and vertical space is limited.
It is possible to deliver overdenture retention by means of simple independent single attachments or more complex bars supported by multiple implants. Numerous cost-effective possibilities are available for the restoration of angled implants.

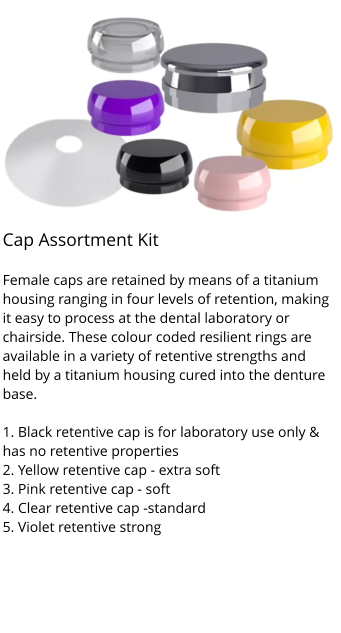

Cap Assortment Kit f Female caps are retained by means of a titanium housing ranging in four levels of retention, making it easy to process at the dental laboratory or chairside. These colour coded resilient rings are available in a variety of retentive strengths and held by a titanium housing cured into the denture base. 1. Black retentive cap is for laboratory use only & has no retentive properties 2. Yellow retentive cap - extra soft 3. Pink retentive cap - soft 4. Clear retentive cap -standard 5. Violet retentive strong Learn more Implant System British Dental Implant design & innovation. Impression Coping Used to take transfer impressions of OT equators This is a pickup coping used to record and transfer the location of OT Equators placed on implants in the mouth to the laboratory for the fabrication of the overdenture analog model. They fit over the OT Equators and are retained in the impression. The laboratory can then insert the Equator laboratory analogs to produce an analog model for fabrication of the overdenture complete with retentive attachments ready for insertion into the patient's mouth. Order Code: 044CAIN Clip Insertion Tool Used to insert retentive clips. This metal tool is used to position the retention clips used with the OT bar system. Order Code: 472ICV Learn more Clip Insertion Tool Used to insert retentive clips. This metal tool is used to position the retention clips used with the OT bar system. Order Code: 472ICV Learn more Learn more Metal Insertion tool for Seeger Used to position the Seeger within the bar The insertion tool is designed to push the Seeger into the bar by directing the seating force evenly. Ref. 185SIS
OT bar Multiuse A castable dual sided overdenture attachement measuring 2.4mm in height. indicated as either a ridged or resiliant bar between implant abutments. The elastic retentive clips are available in four colour-coded levels of retention. An insertion tool and key for paralleling are also available. OT Bar Multiuse Kit Contains: 2 Castable bars 4 Positioner clips A 4 Positioner clips B 4 Castable boxes 4 Retentive Pink clips 4 Retentive Yellow clips 2 Connectors
OT Equator A range of low profile precision attachments that offer multiple options With a low vertical height of 2.1 mm and diameter of 4.4 mm the attachment retention head of the OT Equator is the smallest on the market. The system offers multiple solutions for overdenture treatment planning when vertical space limitations are a consideration. The OT Equator are titanium abutments that can be manufactured with varying cuff heights from 0.5mm to 7mm that can be made to order. Matching female elastic caps are retained by means of a stainless steel housing ranging in four levels of retention, making it easy to process at the dental laboratory or chairside in the dental office. Order Code: 030EZE(X)-x denotes the cuff length. Learn more Learn more OT bar Multiuse A castable dual sided overdenture attachement measuring 2.4mm in height. indicated as either a ridged or resiliant bar between implant abutments. The elastic retentive clips are available in four colour-coded levels of retention. An insertion tool and key for paralleling are also available. OT Bar Multiuse Kit Contains: 2 Castable bars 4 Positioner clips A 4 Positioner clips B 4 Castable boxes 4 Retentive Pink clips 4 Retentive Yellow clips 2 Connectors Learn more OT Equator Castable Male A burn out used to add additional retention. During the fabrication of a bar these burn out OT Equator Castable males can be waxed onto the bar and can be also used to add retention to a bar especially where the implants are not parallel. Order Code. Ref. 151SS OT Equator Driver Holder Outer sleeve used to retain small components during insertion. This fits over the shaft of the square driver and is a safety measure to help prevent the loss of small components while working in the patient's mouth. Order Code: 774HC Implant System British Dental Implant design & innovation. OT Equator Laborator Analogs Replicas of the OT equator Copies of the OT Equator used for the fabrication of an overdenture analogue model. Order Code: 144AE Learn more Learn more Learn more OT Equator Passive Bar System The Seeger system has been designed to allow the construction of bars on implants. The Seeger can correct any imperfections, generated during the technical steps or phase of the attachment position. The Seeger in peek connects the bar passively to the OT Equator attachments and prevents the attachment from unscrewing. The bar can be easily removed with the self-extracting titanium screw. Seeger Kit contains: Castable Cylinder for Seeger Self-extracting Seeger Titanium Screw for the self-extracting Seeger Order Codes:15OR SEEGER8ESA OT Equator Smartbox A system that permits non-parallel implants to be used for overdenture retention. The Smart Box is a retentive caps housing with innovative pivoting mechanism and rotational core that permits passive insertion under extreme situations of up to 50-degree implant divergency. Kit Contains: 1 Smartbox housing with black cap for laboratory 1 Pink protective disk 4 Retentive caps (1 extra-soft, 1 soft, 1 standard, 1 strong) Order Code: 335SBC OT Equator Square Driver Used to insert & retrieve overdenture components The driver tip is a 1.25mm square which engages the OT Equator and titanium screw. It have a outer plastic holder designed to retain the components and screw during use. Order Code: 774CHE Learn more Learn more Learn more Self-Extracting White Seeger Self locking sleeve that retains the bar passively. The split ring design of the Self-Extracting Seeger allows the sleeve to compress and compensate for any misalignment or inaccuracies in the bar construction to give a passive yet secure fit of the bar to the OT Equator. Order Code. 158SAE. Separately Sold Items To facilitate the replacement of attachments, housing and retentive caps the following items can be provided individually: Violet retention cap - STRONG- 2700g (Order Code: 140CEV) Clear retention cap - STANDARD -1800g (Order Code: 140CET) Pink retention cap - SOFT -1200g (Order Code: 140CER) Yellow retention cap - SOFT - 600g (Order Code: 140CEG) Black non-retention laboratory cap - 0g (Order Code: 140CEN) Metal Housings (Order Code: 141CAE) Learn more Learn more Smartbox Housing Pivoting self correcting retentive cap housing. For divergent implant cases of upto 50-degrees. Kit Contains: 1 Smartbox housing with black cap Order Code: 330SBE Learn more Smartbox Non-Retentive Caps for Laboratory Zero strengh cap coloured black for non-clincal application This cap is used for the correct positioning and location of the the OT Smartbox housing, its design incorporates a small vertical spacer ensuring the housing has sufficient space to swivel in order to permit insertion over divergent equators. The black cap must be replaced by the desired strength retentive cap before dispatch to the clinic. Kit Contains: 4 Smartbox black caps (for laboratory use only) Order Code: 335CSB Titanium Screw for Self-Extracting Seeger A screw used to retain a bar passively to the OT Equator The screw fits the Order Code: 158VAE Learn more Learn more
